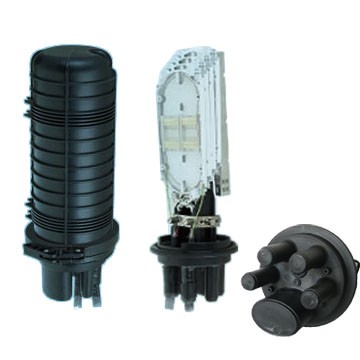

Vertical Fiber Optic Splice Closure Max capacity 96 fibers 5 holes V017-96
P/N: V017-96
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3-7 days
Payment Method: T/T, Western Union
V017-96 Vertical Fiber Optic Splice Closure Max capacity 96 fibers 5 holes
Features:
- Maximum capacity: 96 fibers
- Seal way: Heat shrink sealing
- Cable inlet/outlet: 5 cable ports
- The use of high-strength engineering plastic shell that can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
- The use of reusable components to open seal in order to ensure a good airtight waterproof performance.
- It can be reopened and reused without changing sealing material.
- Does not require special tools, easy to install and open the duplicate.
- The scope of application : aerial, direct-buried, wall-mounting, duct-mounting.
- The application of temperature :-40℃～65℃
Order Information:
P/N | Size(mm) OD*L | Fiber Capacity | No.of Trays | Cable Ports | Cable Diameter (mm) |
V017-24 | Φ205*460 | 24 | 1 | 5 | 8-36mm |
V017-48 | 48 | 2 | 5 | 8-36mm | |
V017-72 | 72 | 3 | 5 | 8-36mm | |
V017-96 | 96 | 4 | 5 | 8-36mm |
