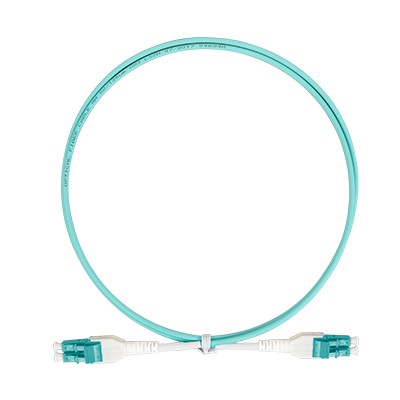

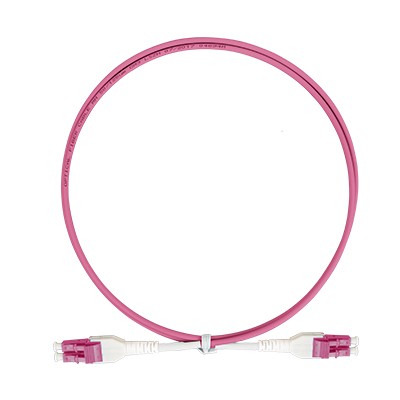

Uniboot LC Fiber optic Patch cord Duplex 3.0 SM OM1 OM2 OM3 OM4 OM5
Item: Uniboot LC Patch cord Duplex
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
Uniboot LC Fiber optic Patch cord Duplex 3.0 SM OM1 OM2 OM3 OM4 OM5
Description:
Jacket : PVC/LSZH
Fiber: SM9/125µm, MM 50/125µm , MM 62.5/125µm
Connectors: 1x LC Uniboot to 1x LC Uniboot
Connectors: 1x LC Uniboot to 1x LC Uniboot
XX=length, any length is available upon your request
Other colors cable Jacket is available
Parameter:
Item | SM | MM | |
| Polishing Type | UPC | APC | PC |
| Insertion Loss | <=0.3dB | <=0.3dB /0.5dB(MTRJ) | |
Customize | |||
| Return Loss | >=55dB | >=60dB | / |
Customize | |||
| Durability | <=0.2dB increase Max. | ||
| Operating Temperature | -20℃ to +75℃ | ||
| Storage Temperature | -40℃ to +75℃ | ||
Product Package:
Each patch cord is packaged individually and individually identified for traceability,
a test certification is supplied with each assembly.
We can provide custom packaging to your specification.
