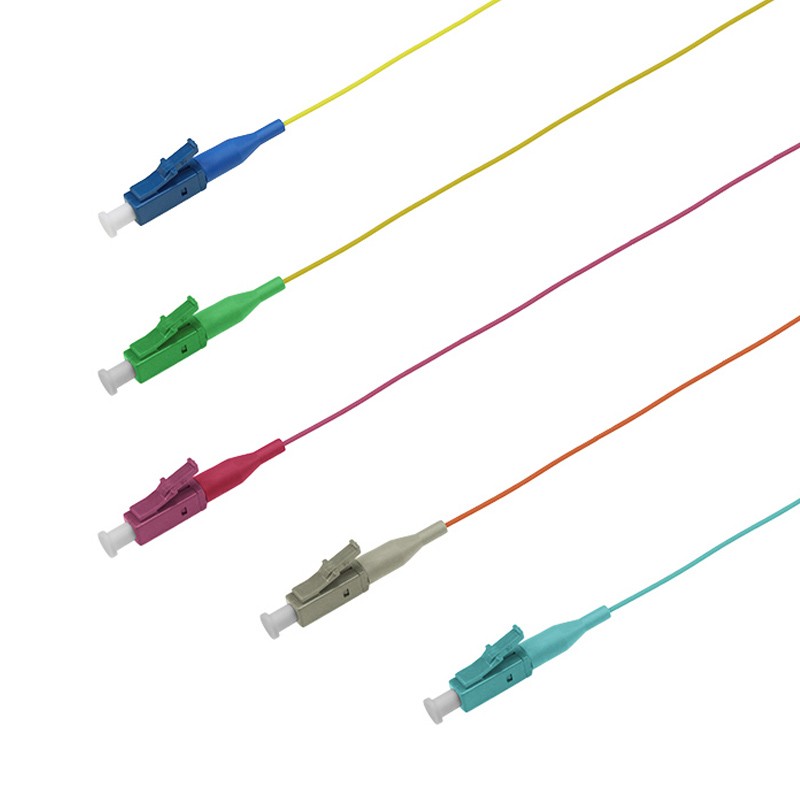

Pigtail LC simplex 0.9mm SM APC OM1 OM2 OM3 OM4 OM5
Item: Simplex 0.9mm Pigtail
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
Pigtail LC simplex 0.9mm SM APC OM1 OM2 OM3 OM4 OM5
Description:
Jacket：PVC/LSZH
Diameter: 0.9mm
Fiber：SM 9/125 G652D/G657A; MM62.5/125 , MM50/125
Connectors: 1x LC
XX=length, any length is available upon your request
XX=length, any length is available upon your request
Various colors cable Jacket is available
The following fiber optic cables are available:
1. Tight buffer
2. Loose tube
3. Semi-tight buffer
Parameter:
Insertion loss ≤0.2dB
Return loss: Single mode UPC≥55dB ; Single mode APC ≥65dB ;
Repeatability ≤0.2dB(1000 times)
Temperature range -40℃ - +85℃
Product Package:
Each pigtail is packaged individually and individually identified for traceability,
A test certification is supplied with each assembly.
We can provide custom packaging to your specification.
