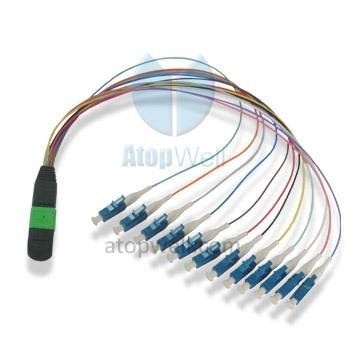

MPO to LC Hydra cable /Break Out Patch cord SM 12fibers
P/N: MPC99A2PG61R-XX
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
MPO to LC Hydra cable /Break Out Patch cord SM 12fibers
Features and Applications:
-For installing inside fiber cassette module
- MTP/MPO Male (with guidepins) assembled with 0.9mm cable to single-fiber connectors
-All types of single-fiber connector interface available for choices (LC, SC, ST, FC, E2000, MTRJ, etc.)
-Available in SM (9/125), MM (50 or 62.5/125), 10Gig(OM3,OM4) fiber types
-Available in 8/12/24 -fiber
-Corning fiber available for selection
Specifications:
MTP/ MPO Termination
Item | SM (APC Polish) | MM (PC Polish) | ||
Fiber Count | 8,12,24 etc | 8,12,24 etc | ||
Fiber Type | G652D, G657A1,etc | OM1,OM2,OM3,OM4,etc | ||
Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
<=0.7dB | <=0.35dB | <=0.5dB | <=0.35dB | |
Return Loss | >=55dB | >=20dB | ||
Durability | >=200times | >=200times | ||
Test Wavelength | 1310/1550nm | 850/1300nm | ||
Operating Temperature | -40℃ to +75℃ | -40℃ to +75℃ | ||
Storage Temperature | -40℃ to +75℃ | -40℃ to +75℃ | ||
Generic Connector Termination:
Item | SM (APC Polish) | SM (UPC Polish) | MM (PC Polish) |
| Insertion Loss | <=0.3dB | <=0.3dB | <=0.3dB |
| Return Loss | >=60dB | >=55dB | >=25dB |
Durability | >=500times | >=500times | >=500times |
Test Wavelength | 1310/1550nm | 1310/1550nm | 850/1300nm |
Operating Temperature | -40℃ to +75℃ | -40℃ to +75℃ | -40℃ to +75℃ |
3D Interferometer test report:
