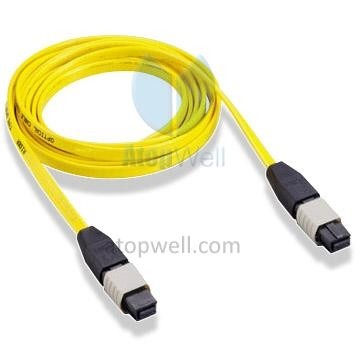

MPO-MPO Patch Cord /Trunk Cable SM 12fibers Flat Ribbon Cable
P/N: MPC98A8AR60R-XX
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
MPO-MPO Patch Cord /Trunk Cable SM 12fibers Flat Ribbon Cable
MPO/MTP is the high dense degree of optical fiber pre-connect system, which is generally use in three areas:
1. The data centra application with high dense degree environment
2. The optical fiber to the building
3. The the internal connector application in fiber equipment such as Splitter, 40G / 100G SFP and SFP+.
Features:
-High density to save space
-Factory terminated & tested with guaranteed quality
-MTP / MPO cable in 12 fiber connector interface
-Round & mini-core cable structure to eliminate bend sensitivity
-Available in SM (9/125), MM (50 or 62.5/125), 10Gig fiber (OM3, OM4)
-Available in 12/24/36/48/72/96/144-fibers
-Corning fiber available for selection
Specifications:
MPO/MTP Termination
Item | SM (APC Polish) | MM (PC Polish) | ||
Fiber Count | 8,12,24 etc | 8,12,24 etc | ||
Fiber Type | G652D, G657A1,etc | OM1,OM2,OM3,OM4,etc | ||
Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
<=0.7dB | <=0.35dB | <=0.5dB | <=0.35dB | |
Return Loss | >=55dB | >=20dB | ||
Durability | >=200times | >=200times | ||
Test Wavelength | 1310/1550nm | 850/1300nm | ||
Operating Temperature | -40℃ to +75℃ | -40℃ to +75℃ | ||
Storage Temperature | -40℃ to +75℃ | -40℃ to +75℃ | ||

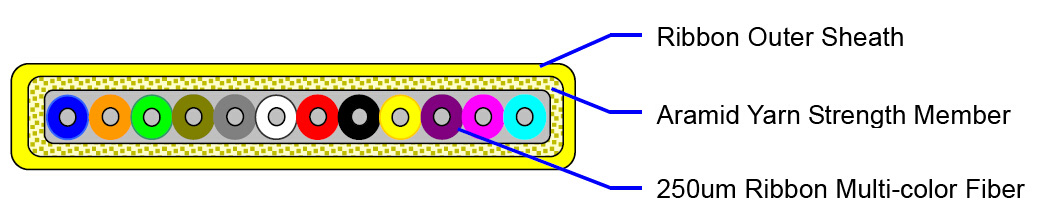

Cable Structure for reference only:
3D Interferometer test report:
Pre-terminated MPO/MTP Technology-Polarity:
The three polarity methods A, B and C are used to guarantee the right bi-directional allocation.
