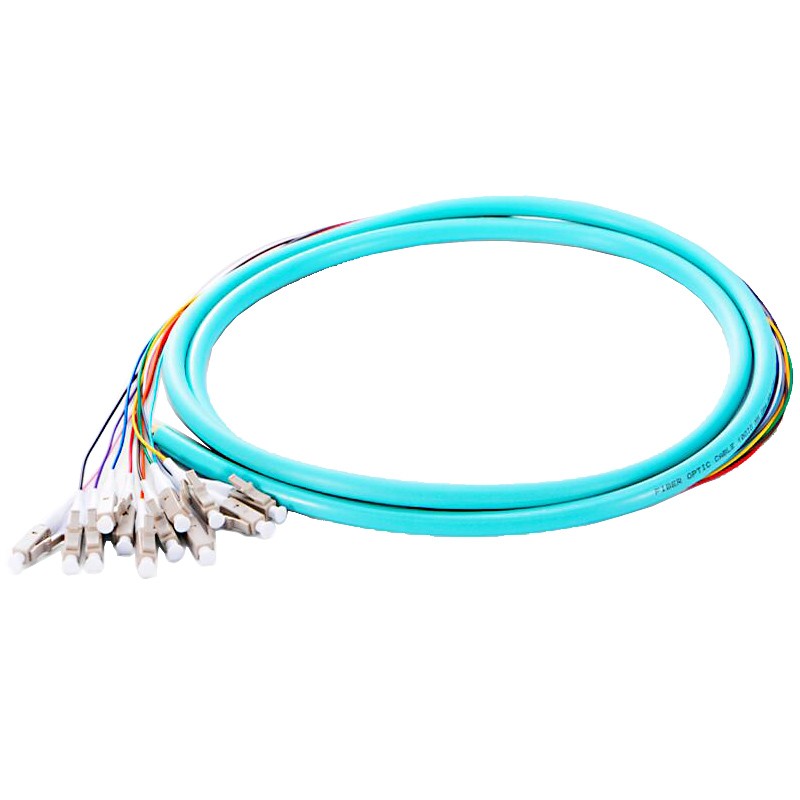

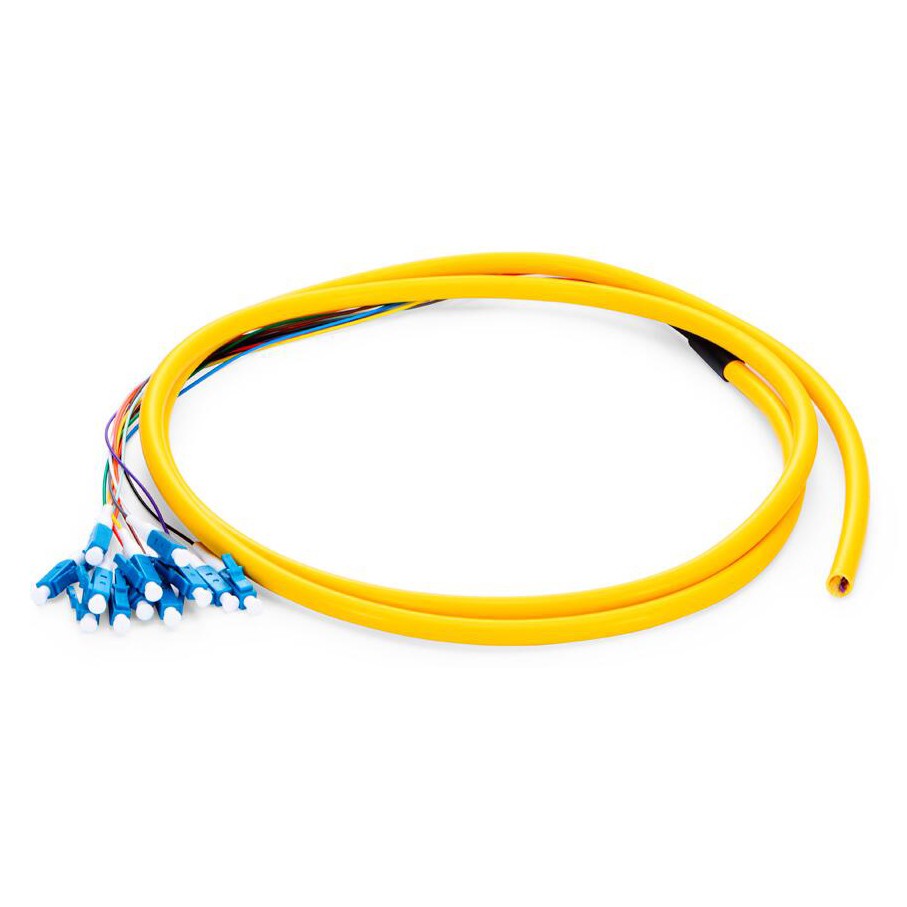

LC Bundle Fan out 0.9mm pigtail 12fibers SM MM
Item: Bundle Pigtail
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3 days
Payment Method: T/T, Western Union
Order Information:
LC/UPC SM 12 fibers Bundle Fan out 0.9mm pigtail
LC/APC SM 12 fibers Bundle Fan out 0.9mm pigtail
LC/UPC OM1 12 fibers Bundle Fan out 0.9mm pigtail
LC/UPC OM2 12 fibers Bundle Fan out 0.9mm pigtail
LC/UPC OM3 12 fibers Bundle Fan out 0.9mm pigtail
LC/UPC OM4 12 fibers Bundle Fan out 0.9mm pigtail
LC/UPC OM5 12 fibers Bundle Fan out 0.9mm pigtail
Description:
Jacket：PVC/LSZH
Diameter: 0.9mm branches
Fiber：SM 9/125 G652D/G657A; MM62.5/125; MM50/125
Connectors: 12x LC
XX=length, any length is available upon your request
Parameter:
Insertion loss ≤0.2dB
Return loss: Single mode UPC≥55dB ; Single mode APC ≥65dB ;
Repeatability ≤0.2dB(1000 times)
Temperature range -40℃ - +85℃
Product Package:
1pc per bag packing and blister packing are available.
A test certification is supplied with each assembly.
We can provide custom packaging to your specification.
