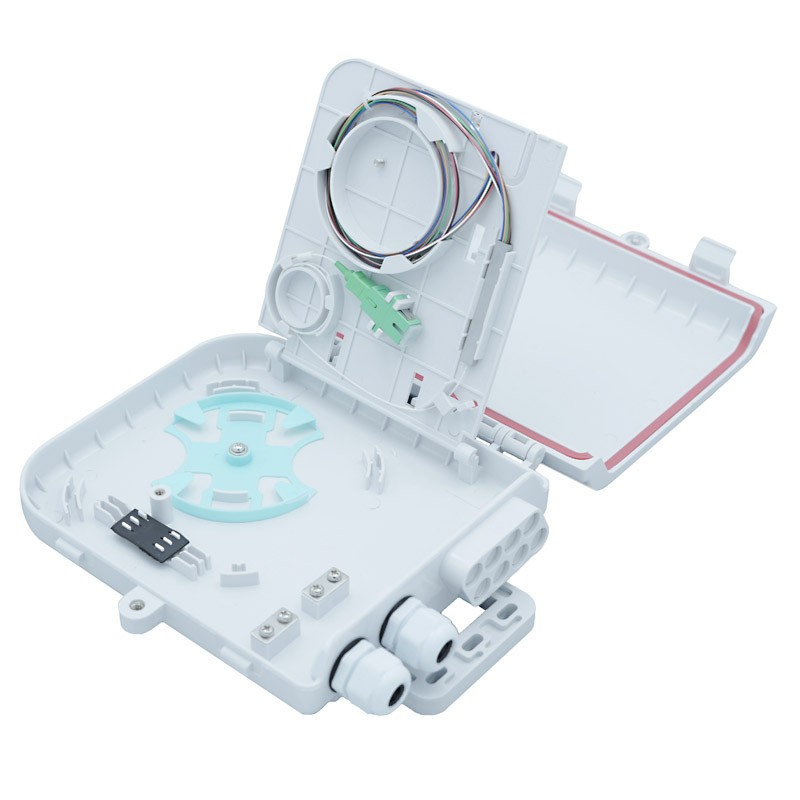

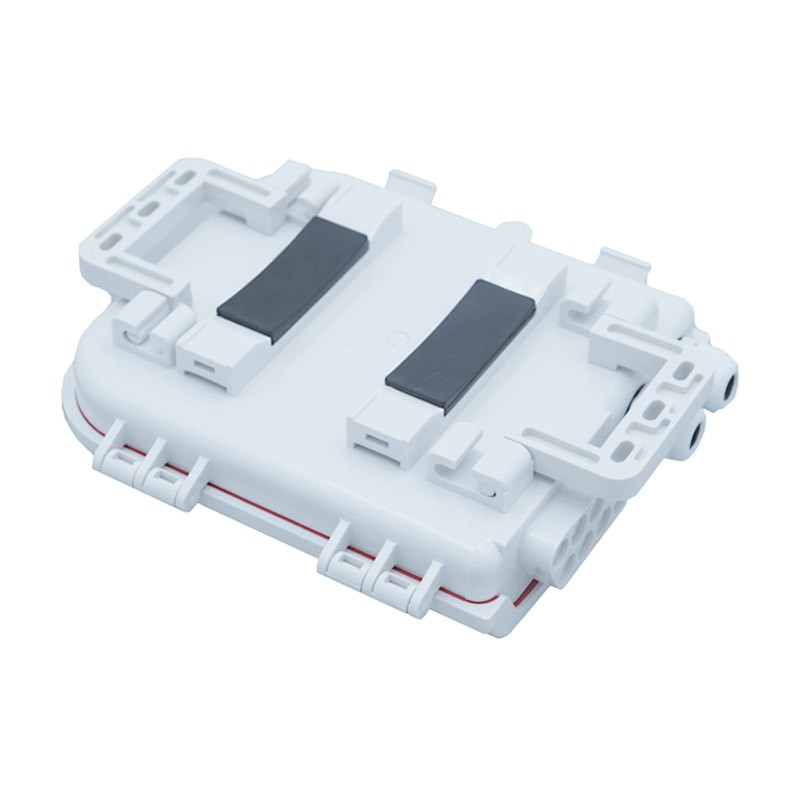

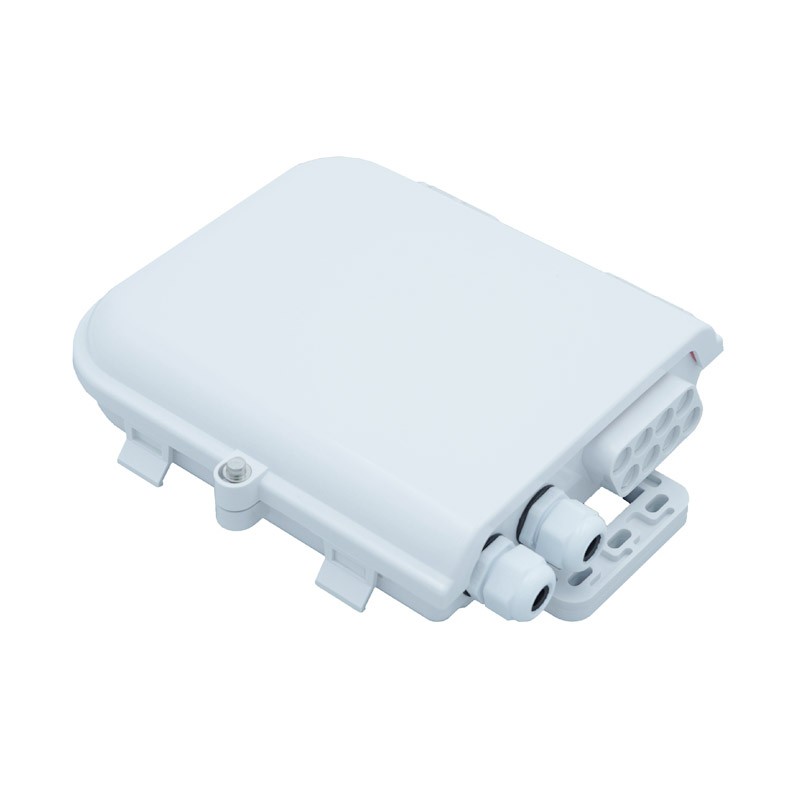

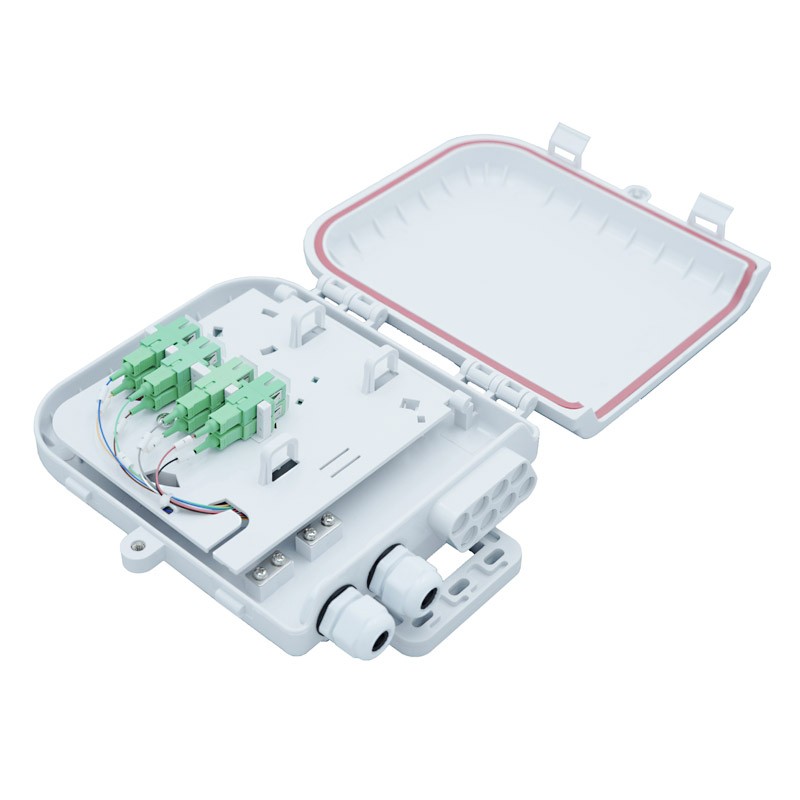

FTTH Distribution box 8Port SC White Outdoor use / DB5-SC8
P/N: DB5-SC8
Packaging: Neutral or OEM service optional
MOQ: 1 Piece
Certificate: RoHS Compliant Material
Lead Time: 3-7 days
Payment Method: T/T, Western Union
DB5-SC8 FTTH Distribution box 8Port SC White Outdoor use
Features:
- Size: 205*215*62mm , 0.75kg
- Widely used in FTTH access network
- For outdoor or indoor wall and pole mounting
- Suitable for 8 SC simplex or 4 LC duplex adapters
- Max splice capacity: 8 cores
- Can install 1x4 (2pcs) or 1x8(1pc) steel pipe type PLC splitter
- Industry Standard User Interface, be made of high impact plastic
- Waterproof IP66
- Anti-UV, Ultra violet resistant and rainfall resistant
- The Operating Temperature is -20℃ to +60℃
- Up to 8 FTTH drops
- 2 inlet ports, 8 outlet ports , Cable diameter (mm) : Φ6~Φ12
- Lockable and include fixation and splicing accessories
